Description

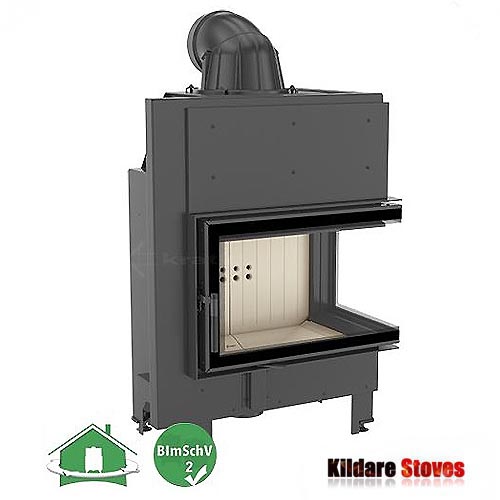

KRATKI MBM 10kw with spliced corner glass
The housing is made of boiler steel with combustion chamber lined with Acumotte.
Vermiculite deflector – extends the exhaust path.
External air inlet – special connector mounted in fireplace insert, which supplies the fresh air to the insert directly from outside.
Adjustable legs for leveling a fireplace.
Regulation of air supply for combustion.
Heat-resistant glass can withstand temperatures up to 800oc.
System glass – external decorative glass, which gives a fireplace modern look.
Ideal for homes with heat recovery units.
Fireplace inserts meets BlmschV 2 norms and regulations.
5 years warranty
Specifications
| Rated power (kW) | 10 |
| Flue diameter (mm) | 200 |
| Efficiency (%) ~ | ~81 |
| CO emission ( after 13% O2) | 0.1 |
| Exhaust gas temperature (°C) | 235 |
| Weight (Kg) | 156 |
| Max wood length (mm) | 500 |
| Range of rated power (kW) | 4-13 |
| Material | Boiler steel, combustion chamber lined with Acumotte |
| Fuel types | Seasonal hardwood (humidity max 20%), brown coal briquettes |

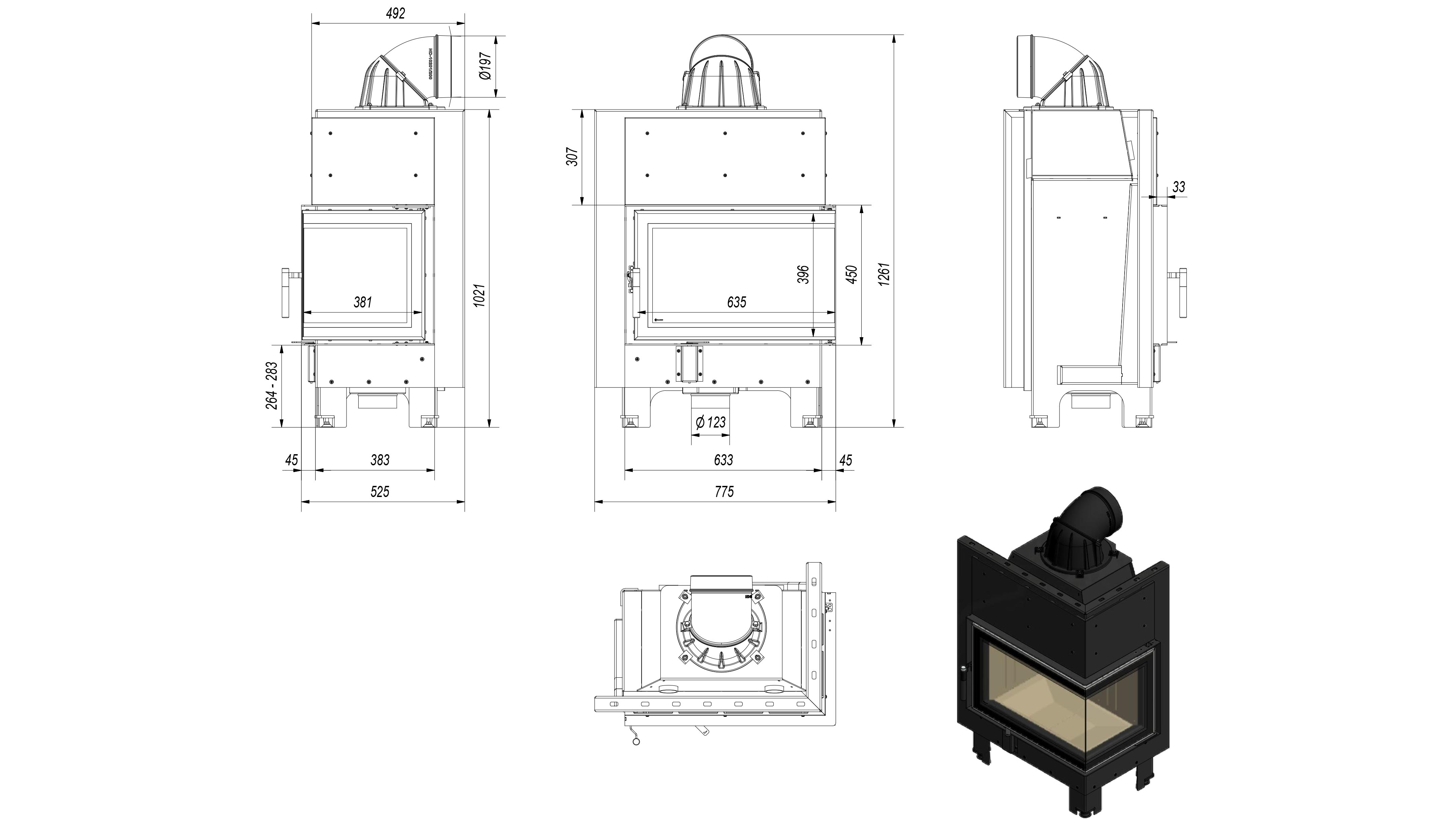

Schematic
