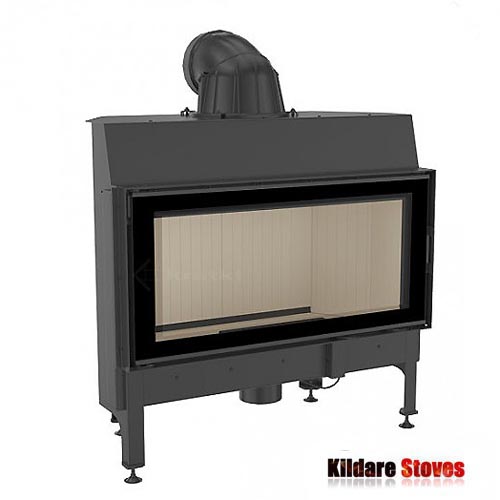

KRATKI Nadia 14kw
The housing is made of boiler steel with combustion chamber lined with Acumotte.
Ideal for homes with heat recovery units.
Fireplace insert meets BlmschV 2 norms and regulations.
Vermiculite deflector – extends the exhaust path.
Adjustable legs for leveling a fireplace.
External air inlet – special connector mounted in fireplace insert, which supplies the fresh air to the insert directly from outside.
Built ins external air inlet diameter 125mm with installed trottle to adjust the air flow.
Regulation of air supply for combustion.
System glass – external decorative glass, which gives a fireplace modern look.
Heat-resistant glass can withstand temperatures up to 800oc.
5 years Warranty.
Specifications
| Rated power (kW) | 14 |
| Flue diameter (mm) | 200 |
| Efficiency (%) ~ | 80 |
| CO emission ( after 13% O2) | 0.09 |
| Exhaust gas temperature (°C) | 245 |
| Weight (Kg) | 177 |
| Max wood length (mm) | 500 |
| Range of rated power (kW) | 6.5-17 |
| Material | 4 mm Boiler steel, Combustion chamber lined with Acumotte |
| Fuel types | Seasonal hardwood (humidity max 20%), brown coal briquettes |

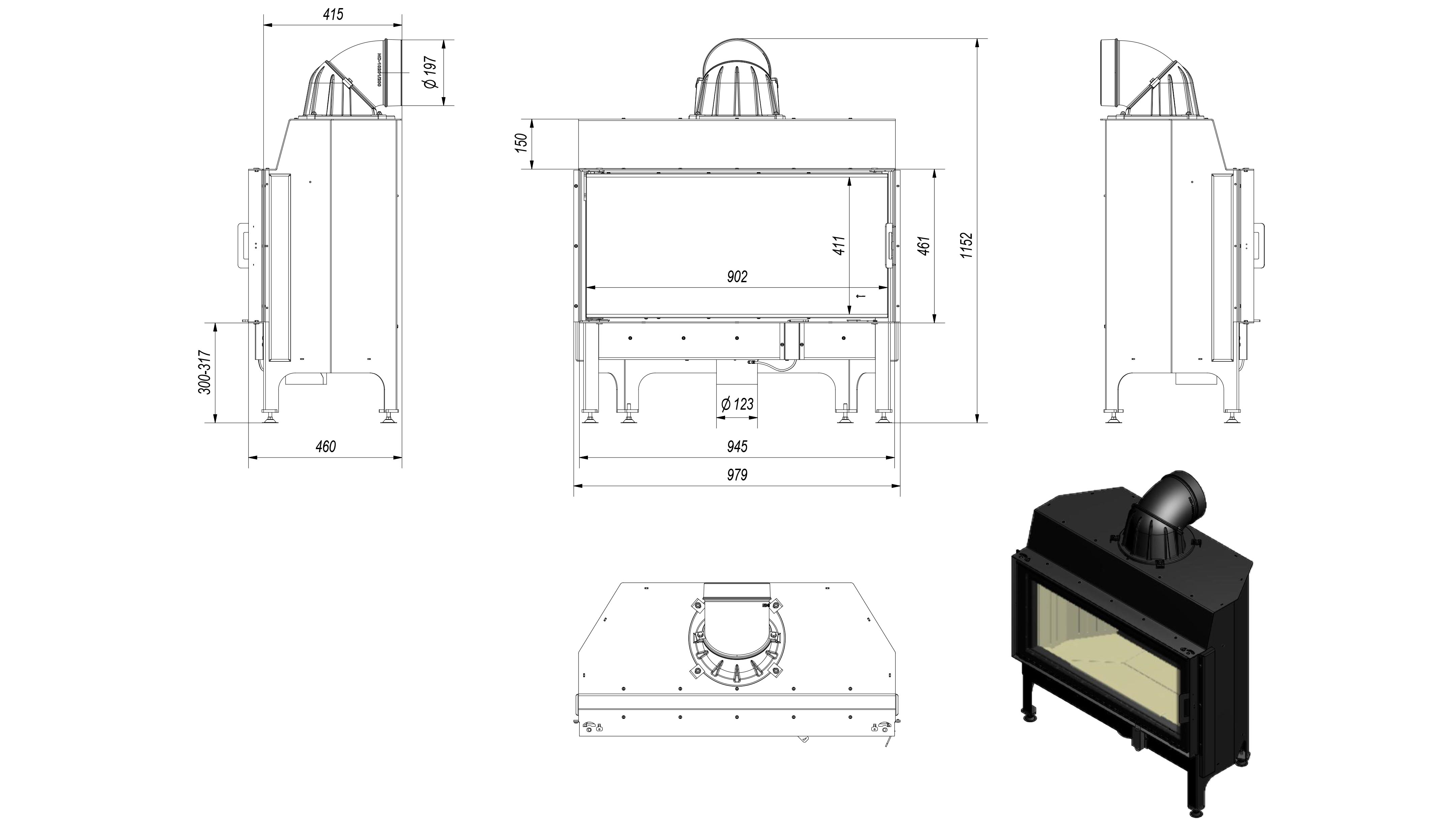

Schematic
