Description
Technical Specification:
Average Thermal Heat Input(Min-Max):5.1–18.0kW
Performance Efficiency(Min-Max):95.0–97.5%
Nominal Overall Power Yield(Min-Max):4.89–17.1kW
Power Delivered To Water(Min-Max):3.10–13.43kW
Power Delivered To Room(Min-Max):0.85–3.71kWApprox.
Heating Capacity –Poor Insulation:80 –260m3Approx.
Heating Capacity –Good Insulation:235–775m3
Pellet Consumption(Min-Max):0.84–3.7kg/hr
Pellet Tank Capacity:33kg
Approx. burn time (Min-Max):9–31hrs
Flue Outlet Diameter:80mm
Electrical Requirement (working):110W
Electrical Requirement (starting):320WNet
Weight:154kg
Dimensions (H x W x D):1,190 x 610x 770mm
Specifications & products may change at any time & without notice
Features:
- Modern design
- High efficiency
- Easy “plug & play” installation
- Curved glass sides
- Monoblock – steel structure, hand-welded
- Removable, air tight ash box
- Neat, integrated boiler
- Integrated, energy-efficient circulating pump
- Integrated expansion vessel
- Programmable LCD control panel
- Thermostatic control
- 5-step power setting – boiler
- Separate 5-step power setting – room
- High temperature resistant, glass-ceramic window
- Remote Control
- Wi-fi enabled for optional remote access control

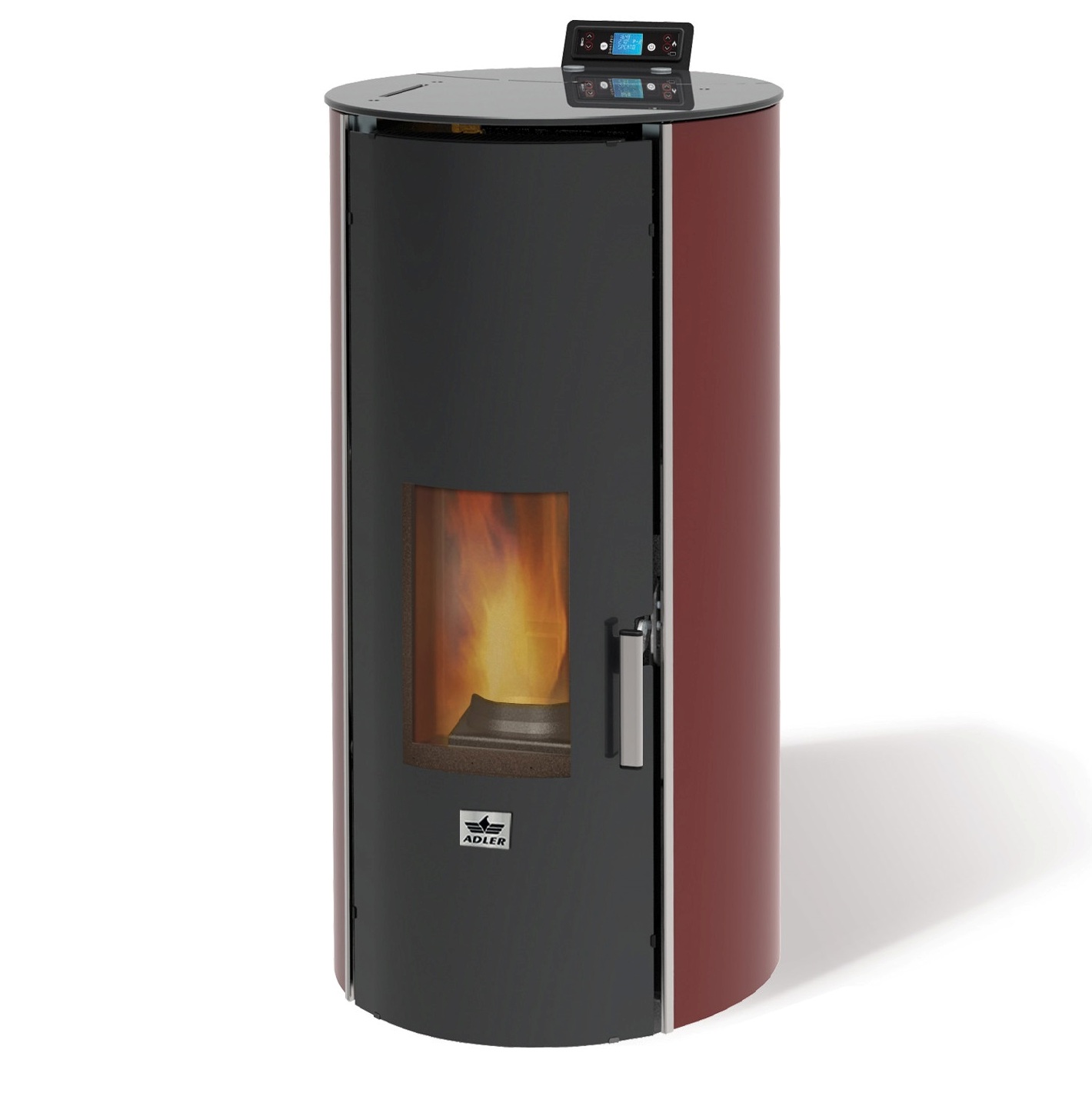

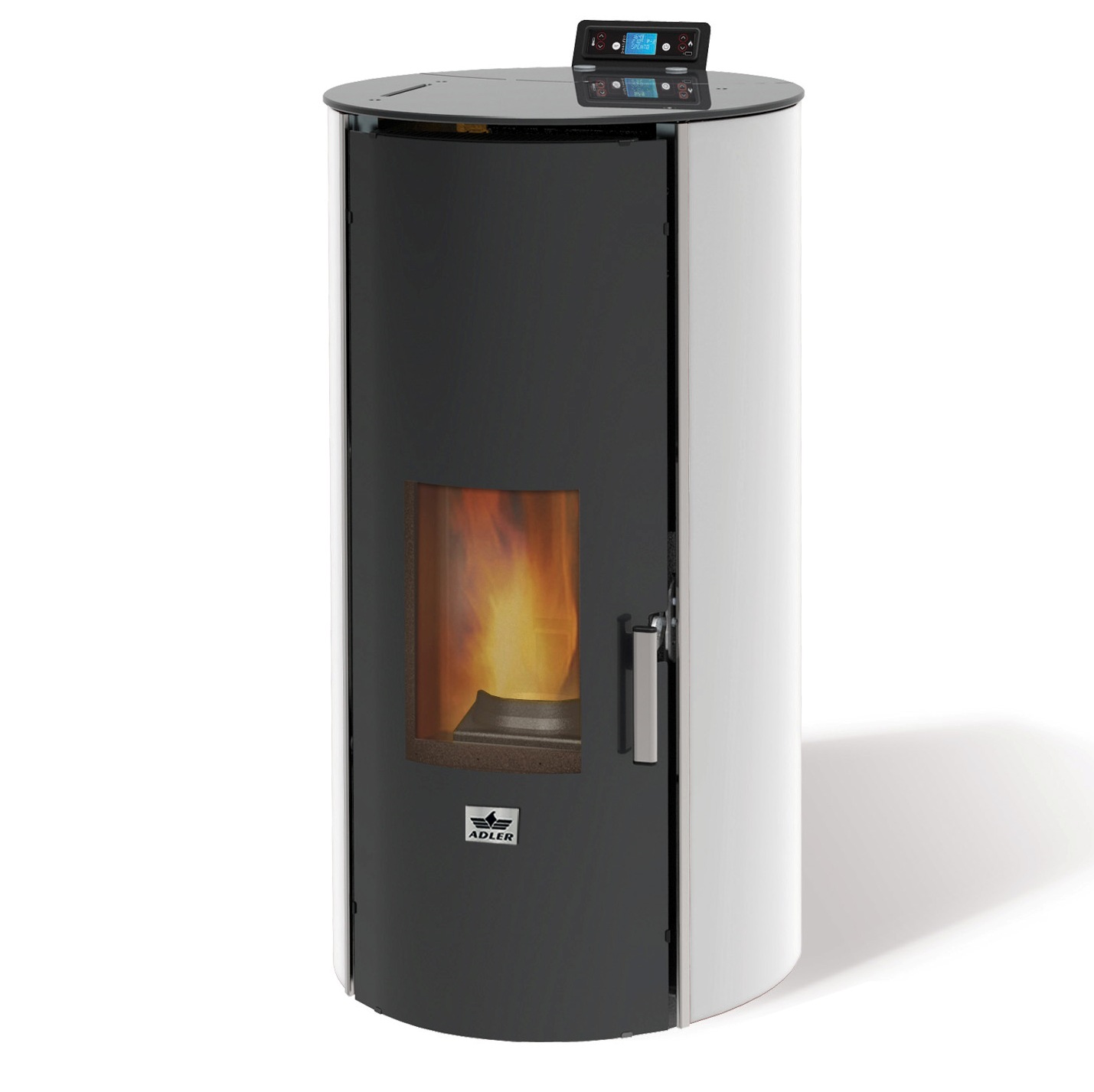

- Available in a selection of colors: bordeaux, cream or black, glass door
